Precision manufacturing often comes down to the final finish. When you need tight tolerances and mirror-like surface finishes on round metal parts, abrasive grinding is usually the answer. However, choosing the specific method—CNC cylindrical grinding or centerless grinding—can drastically impact your production speed, costs, and final part quality.
Understanding the Mechanics
To choose the right process, you first need to understand how the workpiece is supported and manipulated in each machine.
How does CNC Cylindrical Grinding work?
In cylindrical grinding (often called “between-centers” grinding), the workpiece is firmly held in a fixed position. It is mounted between two centers or gripped in a chuck or collet. The workpiece rotates in one direction while the grinding wheel rotates at a much higher speed in the opposite or same direction. The wheel feeds into the work or traverses along the length of the part.
Because the part is physically held on a specific axis, this method establishes a fixed center of rotation.
How does Centerless Grinding work?
As the name implies, centerless grinding does not use centers or chucks to hold the part. Instead, the workpiece is supported by a work-rest blade and sits between two wheels:
- The Grinding Wheel: This removes the material.
- The Regulating Wheel: This controls the rotation speed and feed rate of the workpiece.
The part floats between these three points. The relationship between the blade angle and the two wheels determines the roundness of the final part.
Key Differences: Setup, Accuracy, and Material
When comparing these two methods, manufacturers typically look at three critical factors: how long it takes to set up, the type of accuracy required, and the materials involved.
1. Setup and Cycle Time
CNC Cylindrical Grinding:
This method generally requires more time to load and unload parts because each piece must be manually or expertly automated into the centers or chuck. However, the machine setup for a new part number is often straightforward. It is ideal for lower-volume runs where the time spent loading the part is justified by the precision required.
Centerless Grinding:
Centerless grinding is the king of throughput. Because there is no need to clamp the part, loading times are almost non-existent. Parts can be fed continuously (through-feed grinding), making it incredibly fast for high-volume production. However, setting up the machine initially—aligning the regulating wheel, grinding wheel, and work rest blade—can be complex and time-consuming.
2. Accuracy: Roundness vs. Concentricity
CNC Cylindrical Grinding:
This is the superior choice for concentricity. Because the part is held on a fixed axis (often the same centers used to turn the part), the ground diameter will be perfectly concentric to the center line of the part. It is essential that a diameter be true to a specific geometric feature, such as a shaft shoulder.
Centerless Grinding:
This method excels at roundness. Because the part is floating, it naturally rounds out as it spins. However, because there is no fixed center, centerless grinding cannot guarantee concentricity relative to features that were not ground in the same operation.
3. Material Capabilities
Both machines are capable of grinding a vast array of metals, from soft aluminum to hardened steels.

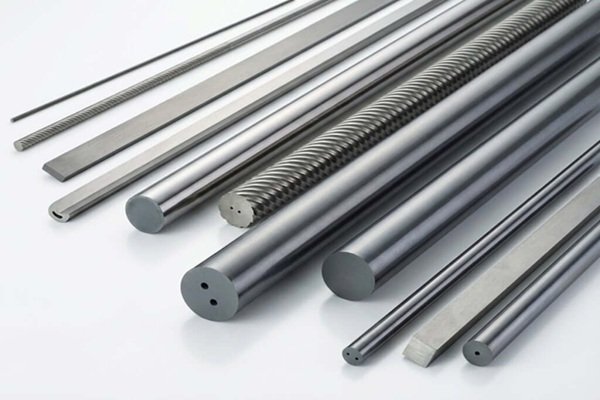

When dealing with extremely hard materials, utilizing a tungsten carbide CNC machining service often requires specific grinding finishing processes to ensure the tool does not micro-fracture. Both cylindrical and centerless grinders can be fitted with diamond or CBN (Cubic Boron Nitride) wheels to handle these super-hard materials effectively.
Additionally, centerless grinding has a unique advantage with brittle or distorted materials. Since the part is supported along its entire length by the regulating wheel and work blade, there is no axial deflection. This allows for the grinding of long, thin, or brittle parts that might snap or bend under the pressure of a cylindrical grinder.
Applications of CNC Cylindrical Grinding
Cylindrical grinding is generally the go-to for complex geometries and high-precision components where the relationship between different diameters is critical.
- Multi-diameter Shafts: Parts that have steps, tapers, or shoulders usually require cylindrical grinding to ensure all features are concentric to one another.
- Aerospace Components: Landing gear components and turbine shafts often require the rigid holding capabilities of cylindrical grinders.
- Low-Volume/High-Mix Production: If you are running 50 parts of one type and 50 of another, the quicker changeover time of cylindrical grinding is advantageous.
- Heavy Workpieces: Large, heavy rolls used in paper or steel mills are almost exclusively ground between centers.
Applications of Centerless Grinding
Centerless grinding is the standard for high-volume manufacturing of simple cylindrical parts.
- Pins and Rollers: Dowel pins, bearing rollers, and wrist pins are classic centerless applications. The through-feed method allows thousands of these to be finished per hour.
- Hydraulic Spools: While they have features, the extreme roundness required for hydraulic sealing often makes centerless grinding the preferred method.
- Long Bars: Because the machine supports the work along its length, centerless grinding is used to prepare long metal bars (bar stock) before they are fed into Swiss CNC lathes.
- Small Medical Parts: Guide wires and syringe needles are often ground centerless because they are too flimsy to be held between centers.
Pros and Cons at a Glance
CNC Cylindrical Grinding
Pros:
- Superior concentricity to the part’s axis.
- Can grind complex shapes (tapers, contours, faces).
- Easier setup for small batches.
- Can grind internal diameters (ID grinding).
Cons:
- Slower cycle times due to loading/unloading.
- Workpiece can deflect (bend) if it is long and thin.
- Requires center holes to be machined into the part ends.
Centerless Grinding
Pros:
- Extremely fast cycle times (high production).
- Excellent roundness and surface finish.
- Supports the part fully, eliminating deflection.
- No center holes required in the workpiece.
Cons:
- Cannot guarantee concentricity to previously machined features.
- Lengthy setup time makes it expensive for small batches.
- Generally limited to external diameters (OD) only.
Frequently Asked Questions
Which grinding method is cheaper?
For high-volume production (thousands of parts), centerless grinding is usually cheaper per unit due to its speed. For low-volume or prototype work, cylindrical grinding is more cost-effective because the setup costs are lower.
Can centerless grinding handle parts with heads?
Yes, using “in-feed” or “plunge” grinding. The part is placed manually or robotically between the wheels, ground, and then ejected. It is slower than through-feed grinding but retains the benefits of roundness and support.
Is centerless grinding accurate?
Yes, it is incredibly accurate regarding diameter sizing and roundness. It can easily hold tolerances within millionths of an inch. Its main limitation is geometric position (concentricity), not sizing accuracy.
Conclusion
Now that you have a better understanding of centerless grinding, you can see how it is a highly efficient and accurate method for grinding cylindrical parts. Its unique ability to avoid the need for centers and support mechanisms makes it a valuable technique in various industries.
